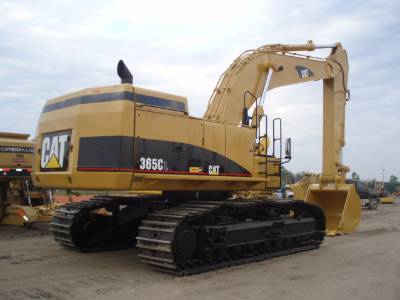

CATERPILLAR 365C L HYDRAULIC EXCAVATOR
Specification
Engine
MAKE Caterpillar
MODEL C15 ACERT
NET POWER 411 hp 306.5 kw
POWER MEASURED @ 1800 rpm
DISPLACEMENT 928 cu in 15.2 L
ASPIRATION Turbocharged
NUMBER OF CYLINDERS 6
Operational
OPERATING WEIGHT 154037 lb 69870 kg
FUEL CAPACITY 211 gal 800 L
COOLING SYSTEM FLUID CAPACITY 25 gal 95 L
HYDRAUILC SYSTEM FLUID CAPACITY 177 gal 670 L
ENGINE OIL CAPACITY 14.3 gal 54 L
SWING DRIVE FLUID CAPACITY 3.2 gal 12 L
ALTERNATOR SUPPLIED AMPERAGE 75 amps
HYDRAULIC SYSTEM RELIEF VALVE
PRESSURE
4640 psi 32000 kPa
HYDRAULIC PUMP FLOW CAPACITY 212 gal/min 800 L/min
Swing Mechanism
SWING SPEED 6.5 rpm
SWING TORQUE 150850 lb ft 204500 Nm
Undercarriage
NUMBER OF SHOES PER SIDE 47
SHOE SIZE 26 in 650 mm
NUMBER OF CARRIER ROLLERS PER SIDE 3
NUMBER OF TRACK ROLLERS PER SIDE 8
GROUND PRESSURE 14.4 psi 99.2 kPa
MAX TRAVEL SPEED 2.6 mph 4.1 km/h
DRAWBAR PULL 103767 lb 462 kN
TRACK GAUGE 9 ft in 2750 mm
Buckets
REFERENCE BUCKET CAPACITY 3.7 yd3 2.8 m3
MAXIMUM BUCKET CAPACITY 6 yd3 4.6 m3
Boom/Stick Option (HEX) 1
BOOM/STICK OPTION (HEX) 1 Boom 25'7" (7800mm) / Stick 15'4" (4670mm)
SHIPPING HEIGHT OF UNIT 16.3 ft in 4960 mm
SHIPPING LENGTH OF UNIT 43.3 ft in 13170 mm
MAX DIGGING DEPTH 31 ft in 9640 mm
MAX REACH ALONG GROUND 46.1 ft in 14040 mm
MAX CUTTING HEIGHT 43 ft in 13117 mm
MAX LOADING HEIGHT 30.2 ft in 9190 mm
MAX VERTICAL WALL DIGGING DEPTH 24.9 ft in 7577 mm
Boom/Stick Option (HEX) 2
BOOM/STICK OPTION (HEX) 2
Boom 25'7" (7800mm) / Stick 13'7" (4150mm)
SHIPPING HEIGHT OF UNIT 15.2 ft in 4615 mm
SHIPPING LENGTH OF UNIT 43.4 ft in 13225 mm
MAX DIGGING DEPTH 29.3 ft in 8940 mm
MAX REACH ALONG GROUND 44.3 ft in 13490 mm
MAX CUTTING HEIGHT 41.8 ft in 12727 mm
MAX LOADING HEIGHT 29 ft in 8830 mm
MAX VERTICAL WALL DIGGING DEPTH 22.6 ft in 6882 mm
